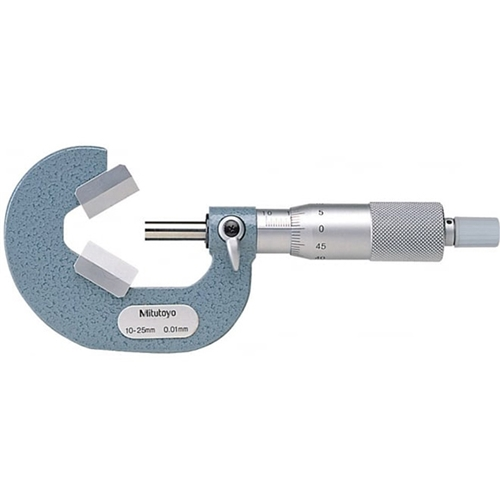

MITUTOYO 3 Flute V-Anvil Micrometer

MITUTOYO 3 Flute V-Anvil Micrometer

15000 INR/Piece

Product Details:

X

Price And Quantity

  • 15000 INR/Piece
  • 1 Millimeter

Trade Information

  • Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • 10 Millimeter Per Day
  • 4 Week
  • All India
  • NABL

Product Description

Order now at Nixacart.comThis V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
Features
Range: 10 - 25 mm
Maximum Permissible Error J MPE: ±4 µm
Measuring force: 5 - 10 N
Setting standard: 167-328 ø 10 mm
Remarks: With groove
Mass: 280 g
Measuring face: Prism angle 60°/108°
Measuring spindle: With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Digital/Analog: Analog
Inch-Metric: Metric
Measuring spindle: With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Delivered: Including box, setting standard, key
